Nozzle, Washer: Installation: Rear
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If a rear washer nozzle is being reused, inspect the latch features on each side of the nozzle carefully for damage. If either latch feature has been damaged, discard the nozzle and replace it with a new unit.

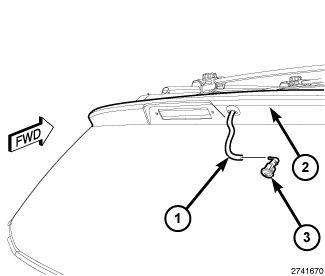

- Position the rear washer nozzle (3) to the mounting hole in the liftgate spoiler (2). Be certain that the rubber gasket is in position on the back of the nozzle.
- Connect the washer supply line (1) to the barbed nipple on the back of the nozzle.
- Insert the supply line and nozzle nipple through the mounting hole in the spoiler and align the anti-rotation tab to the notch of the mounting hole.
- Using hand pressure, push firmly and evenly on the nozzle until both integral latch features are fully engaged on the back side of the spoiler mounting hole.
