Nozzle, Washer: Installation: Front
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

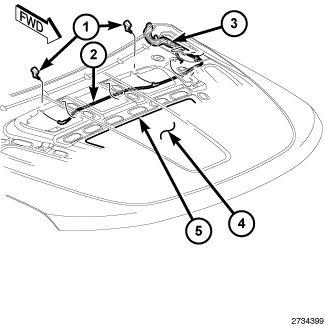

- From the top of the hood, position the front washer nozzle (1) to the mounting hole on the outside of the hood panel (4).
- Align the anti-rotation tabs of the nozzle with the anti-rotation notches in the mounting hole.
- Using hand pressure, push firmly and evenly on the top of the washer nozzle until the integral latch features lock into place on the underside of the hood.
- From the underside of the hood, connect the washer hose (2) fitting to the barbed nipple of the nozzle.
- Install the push-in retainers that secure the rear edge of the hood silencer pad to the inner hood reinforcement (5).
