Nozzle, Washer: Description: Rear

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

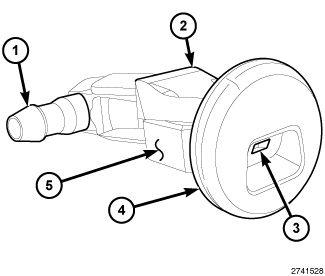

Fig 1: Rear Washer Nozzle, Latch Features, Rubber Gasket, Nozzle Orifice & Plumbing Fitting

Courtesy of CHRYSLER GROUP, LLC

The fluidic rear washer nozzle (2) is constructed of molded plastic and includes an integral check valve. The rear washer nozzle is secured by two integral latch features (5) within a mounting hole near the Center High-Mounted Stop Lamp (CHMSL) in the lower surface of the rear spoiler above the liftgate glass opening on the outer liftgate panel.

The outer surface of the washer nozzle is visible on the lower exterior surface of the spoiler, and a rubber gasket (4) seals the nozzle to the spoiler mounting hole. The nozzle orifice (3) is oriented downward towards the liftgate glass. The washer plumbing fitting (1) is concealed between the spoiler and the liftgate outer panel.

The rear washer nozzle cannot be adjusted or repaired and, if ineffective or damaged, it must be replaced.
