Motor, Window Regulator: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Door Trim Panel
GC0145458Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the door interior trim panel (2). Refer to PANEL, DOOR TRIM, REMOVAL or PANEL, REAR DOOR TRIM, REMOVAL for the appropriate procedure.

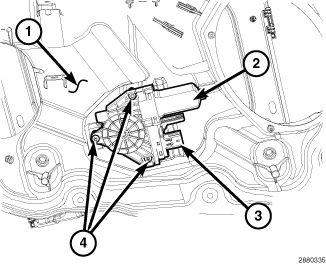

    Fig 2: Window Motor
    GC0145377Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the power window motor electrical connector from the motor electrical connector receptacle (3).
  4. Remove the three fasteners (4) that secure the power window motor and gear assembly (2) to the carrier plate (1) and remove the motor and gear assembly.
