B0020-13-1ST Row Left Thorax/Seat Mounted Side Squib 1 - Circuit Open: Notes
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

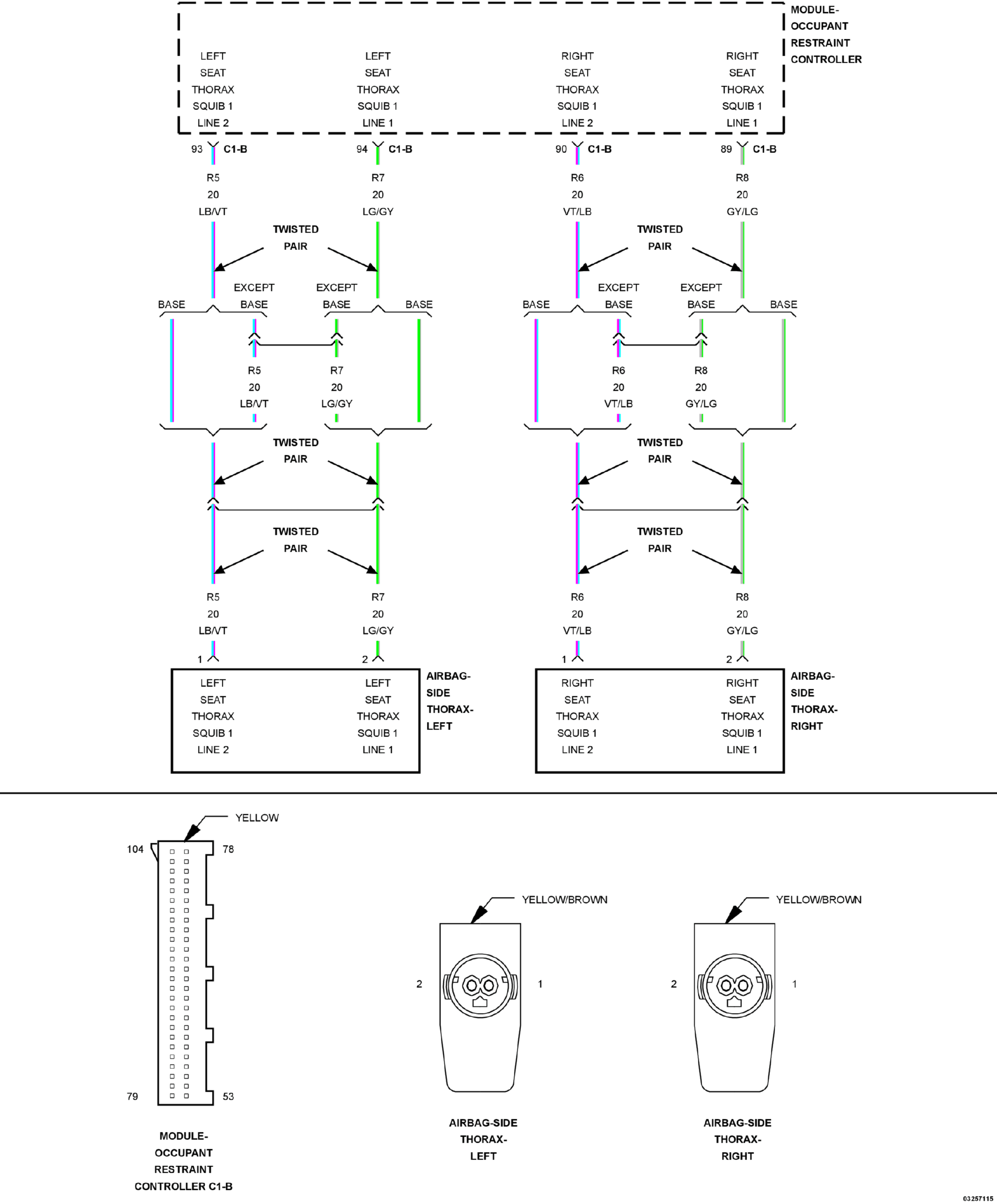

Fig 1: Side Squib 1 Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram, refer to Wiring Information
.
