Second Row Bench - Left Outboard
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
- Fold and tumble the left (60 percent) half of the second row bench seat.

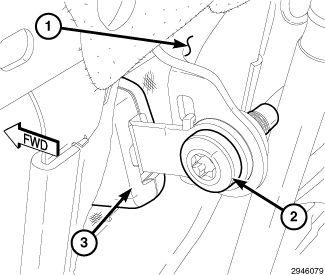

- Remove the screws and disengage the snap clips that secure the molded plastic trim cover to the underside of the left second row bench seat cushion frame (1) and remove the trim cover.
- Remove the screw (2) that secures the left outboard seat belt buckle (3) to the mounting bracket on the bench seat cushion frame.
- Remove the second row left outboard seat belt buckle from the bench seat.
