Section 157 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Removal: Tweeter

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

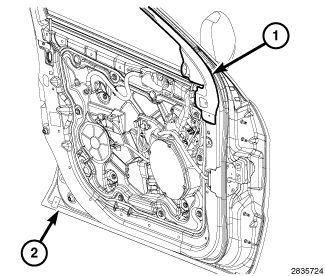

Fig 1: Upper Door Trim Panel

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the upper door trim panel (1). Refer to PANEL, DOOR TRIM, REMOVAL .

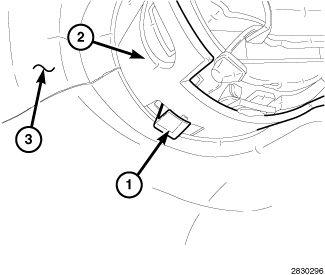

Fig 2: Tweeter Tabs
Courtesy of CHRYSLER GROUP, LLC
Push in on the tweeter tabs (1) to release the tweeter (2) from the upper door trim panel (3).
Remove the tweeter from the upper trim panel.
