Front Door

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Wire Harness Connector & Speaker

Courtesy of CHRYSLER GROUP, LLC

Connect the wire harness (1) connector to the speaker (2).

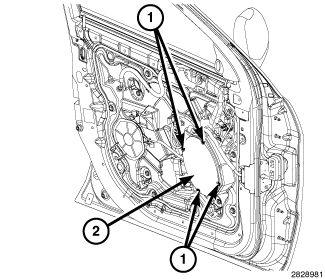

Fig 2: Speaker & Mounting Fasteners
Courtesy of CHRYSLER GROUP, LLC
Position the speaker (2) to the door.
Install and tighten the mounting fasteners (2).

Fig 3: Interior Trim panel
Courtesy of CHRYSLER GROUP, LLC
Install the front door trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION .
Connect the battery negative cable.
