Section 157 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Removal: D-Pillar

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Upper Trim Molding

Courtesy of CHRYSLER GROUP, LLC

Remove the rear header panel. Refer to PANEL, HEADER, REAR, REMOVAL .

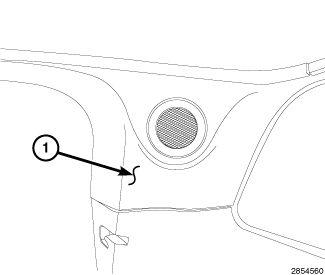

Fig 2: D-Pillar Trim Panel
Courtesy of CHRYSLER GROUP, LLC
Remove the D-Pillar trim panel (1). Refer to PANEL, D-PILLAR TRIM, REMOVAL .

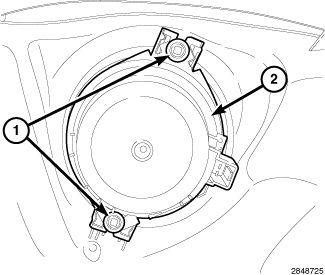

Fig 3: Retainers & Speaker
Courtesy of CHRYSLER GROUP, LLC
Remove the retainers (1) and remove the speaker (2).
