Rear Door

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

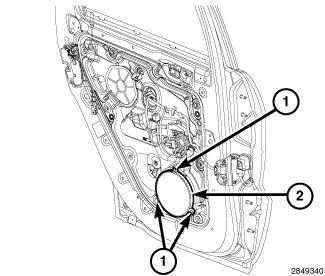

Fig 1: Rear Door Mounting Fasteners & Speaker

Courtesy of CHRYSLER GROUP, LLC

Connect the wire harness connector to the speaker.
Position the speaker to the door (2).
Install and tighten the mounting fasteners (1).

Fig 2: Rear Door Trim Panel, Door & Interior Door Lock Link
Courtesy of CHRYSLER GROUP, LLC
Install the rear door trim panel.
Connect the battery negative cable.
