Instrument Panel

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

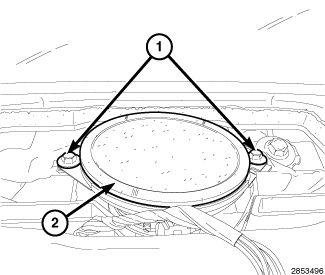

Fig 1: Retainers & Speaker
GC0145483Courtesy of CHRYSLER GROUP, LLC
  1. Connect the connector to the speaker.
  2. Position the speaker (2) to the instrument panel.
  3. Install and tighten the mounting fasteners (1).

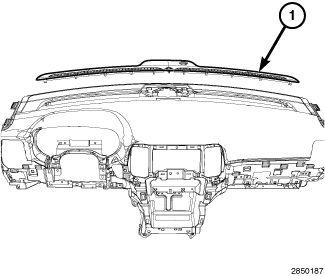

    Fig 2: Defroster Grille
    GC0145480Courtesy of CHRYSLER GROUP, LLC
  4. Install the defroster grille (1). Refer to GRILLE, DEFROSTER, INSTALLATION .
  5. Connect the negative battery cable.
