Section 157 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Description: SRT
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

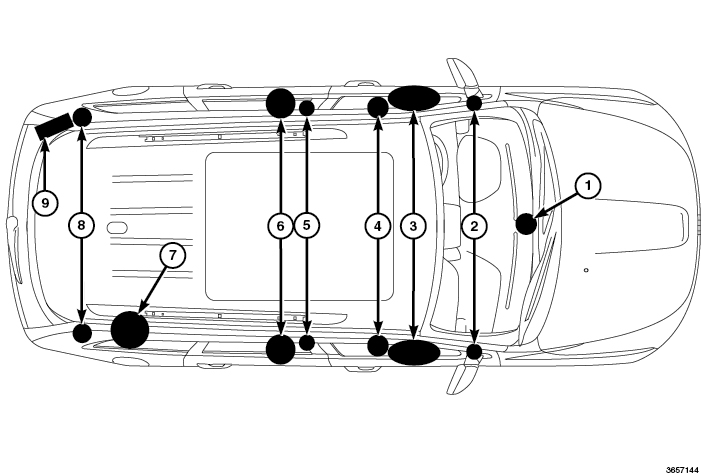

The SRT Harman™ System speaker system includes speakers in 14 locations. Each of the standard speakers is replaced with Harman™ speakers.
- One 8.89 centimeter (3.5 inch) diameter speaker is installed in the center of the instrument panel under the defroster grille (1).
- One 2.54 centimeter (1 inch) silk dome tweeter speaker is located in the mirror flag area of each front doors (2).
- One 15.2 X 22.9 centimeter (6 X 9 inch) speaker is located in each front door (3).
- One 8.89 centimeter (3.5 inch) diameter speaker is located in each front door (4).
- One 2.54 centimeter (1 inch) silk dome tweeter speaker is located in each rear door (5).
- One 16.5 centimeter (6.5 inch) diameter speaker is located in each rear door (6).
- One 25.4 centimeter (10 inch) subwoofer located in the right side quarter panel (7)
- One 8.89 centimeter (3.5 inch) diameter speaker is installed in each of the D-Pillars (8).
- The SRT Harman™ speaker system also includes a 900 watt amplifier located in the left side quarter panel (9).
