Section 157 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Description: Premium
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

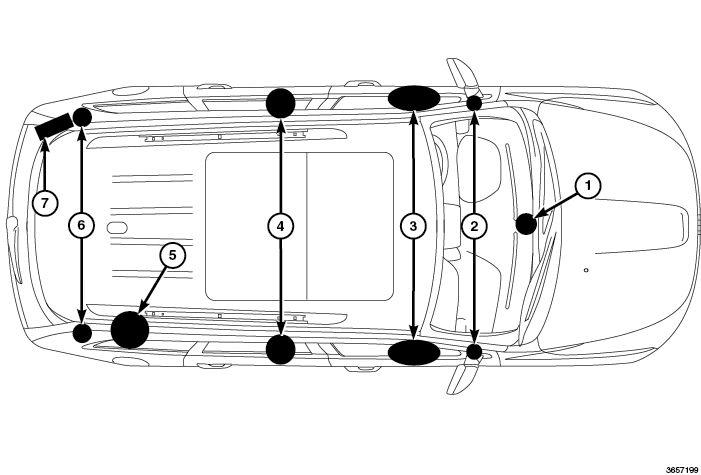

The Premium Alpine System speaker system includes speakers in 10 locations.
- One 8.89 centimeter (3.5 inch) diameter speaker is installed in the center of the instrument panel under the defroster grille (1).
- One 2.54 centimeter (1 inch) silk dome tweeter speaker is located in the mirror flag area of each front doors (2).
- One 15.2 X 22.9 centimeter (6 X 9 inch) speaker is located in each front door (3).
- One 16.5 centimeter (6.5 inch) diameter speaker is located in each rear door (4).
- One 20.3 centimeter (8 inch) subwoofer located in the right side quarter panel (5)
- One 6.35 centimeter (2.5 inch) diameter speaker is installed in each of the D-Pillars (6).
- The Premium Alpine speaker system also includes a 506 watt amplifier located in the left side quarter panel (7).
