Media Hub: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

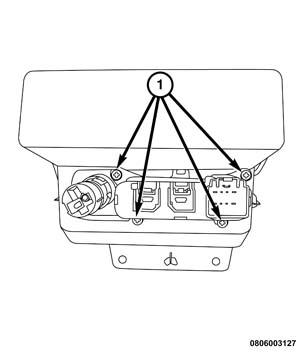

Fig 1: Media Hub & Fasteners
GC0158373Courtesy of CHRYSLER GROUP, LLC
  1. Install the four fasteners (1) retaining the Media hub to the Instrument Panel Bin and securely tighten.
  2. Install the Instrument Panel Bin (Refer to REMOVAL ).
  3. Connect the negative battery cable.
