Pcm To Body To Engine

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The ground strap is V shaped and attaches to three different locations.

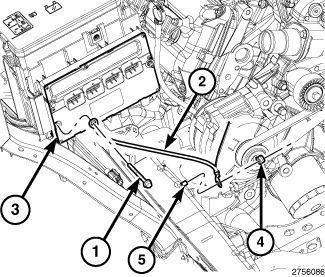

Fig 1: Retainer, Ground Strap, Retainer & Body Ground Stud

Courtesy of CHRYSLER GROUP, LLC

Remove the retainer (1) attaching the ground strap (2) to the PCM (3).
Remove the retainer (4) attaching the ground strap (2) to the body ground stud (5).

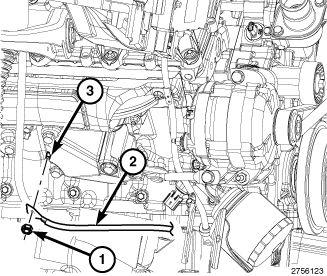

Fig 2: Retainer, Ground Strap & Engine Stud
Courtesy of CHRYSLER GROUP, LLC
Remove the retainer (1) attaching the ground strap (2) to the engine stud (3).
