Hood To Body

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

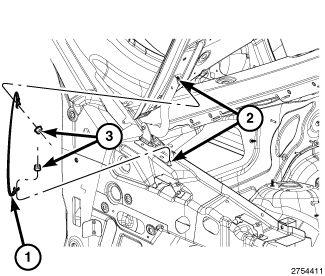

Fig 1: Two Retainers, Fender Stud & Ground Strap
GC0145463Courtesy of CHRYSLER GROUP, LLC
  1. Install the ground strap (1) on the hood and fender studs (2).
  2. Install the two retainers (3).

    Tighten to 17 N.m (13 ft.lbs.).
