Outer Tie Rod

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

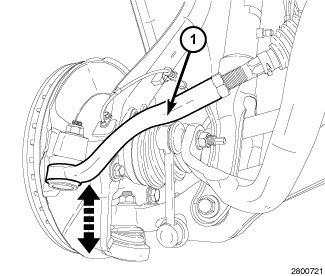

Fig 1: Checking Outer Tie Rod For Free-Play
GC0145976Courtesy of CHRYSLER GROUP, LLC

Grasp the outer tie rod near the ball stud and attempt to move the tie rod straight up and down. If any free-play is felt, replace the outer tie rod. Refer to END, TIE ROD, REMOVAL . If no free-play is felt at the outer tie rod, attempt to move the inner tie rod in the same manner. Refer to the following procedure.
