Motor, Tilt: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

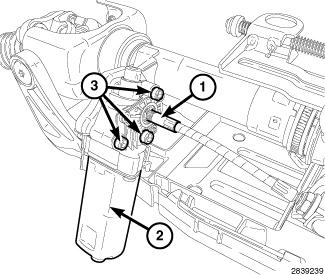

Fig 1: Tilt Motor, Three Bolts & Flex Drive

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage.

Remove the steering column from the vehicle. Refer to COLUMN, REMOVAL .
Place steering column on a flat bench, with the tilt motor (2) over the edge.
Remove the three bolts (3) that hold the tilt motor to the steering column assembly.
Pull the tilt motor (2) away from the steering column assembly and pull off of the flex drive (1).
