Link, Stabilizer Bar: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

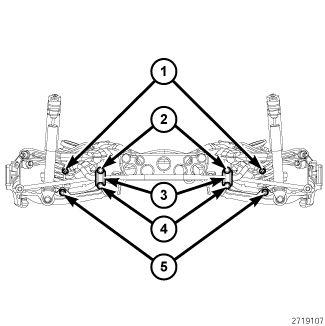

Fig 1: Stabilizer Bolt/Nut & LCA Bolt/Nut

Courtesy of CHRYSLER GROUP, LLC

NOTE:

When the stabilizer bar or links are serviced it is recommended that a drive on hoist is used. If the suspension is hanging, there will be tension on the stabilizer bar.

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the stabilizer link to stabilizer bolt/nut (1).
Remove the stabilizer link to LCA bolt/nut (5).
Remove the stabilizer bar link from the vehicle.
