Dual Muffler/Resonator: 5.7L

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

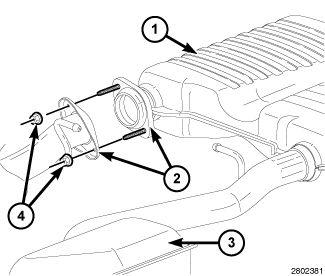

Fig 1: Side Muffler Resonator Assembly, Flange And Mounting Nuts
GC0144314Courtesy of CHRYSLER GROUP, LLC
  1. Raise the vehicle.
  2. Remove the two mounting nuts (4) at the muffler flange (2).
  3. Remove the isolators to the left side resonator.
  4. Remove left side resonator/tailpipe assembly from the muffler flange (2).
  5. Loosen the front strap clamps at the catalytic convertor down pipes.
  6. Remove the isolators to the muffler/resonator assembly.
  7. Remove the right side muffler/resonator (1) assembly.
