Dual Muffler/Resonator: 3.6L

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

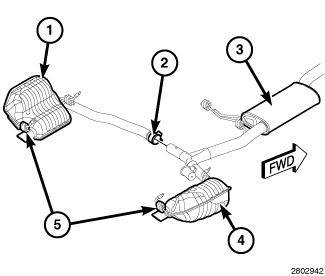

Fig 1: Pipe Strap Clamps, Isolators And Tailpipe Assembly
GC0144315Courtesy of CHRYSLER GROUP, LLC
  1. Raise the vehicle.
  2. Loosen the pipe strap clamp (2) for the left side resonator pipe.
  3. Remove the isolators (5) at the left side resonator.
  4. Remove the left side resonator and tailpipe assembly (1).
  5. Loosen the front strap clamps at the catalytic convertor down pipes.
  6. Remove the isolator to the muffler/resonator assembly.
  7. Remove the right side muffler/resonator assembly.
