Plate, Skid, Front: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

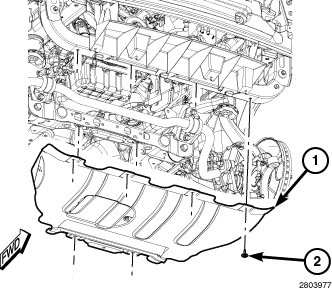

Fig 1: Skid Plate & Fasteners
GC0145977Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Install the skid plate (1) and install the six fasteners (2).
  3. Tighten the fasteners to 55 N.m (41 ft. lbs.).
