Hook(S), Tow, Rear: Removal: Removal
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

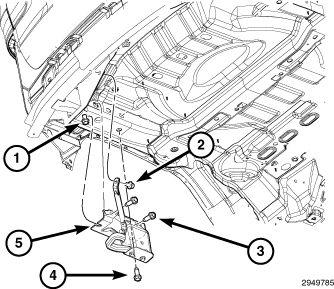

Fig 1: Rear Tow Hook Bolt, Reinforcement Bracket Bolt, Side Bracket Bolts, Lower Frame Bolt & Tow Hook Assembly
- Loosen the rear tow hook bolt (1).
- Remove the reinforcement bracket bolt (2).
- Remove the side bracket bolts (3).
- Remove the lower frame bolt (4) and remove the tow hook assembly (5).
