Rotor Installed

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

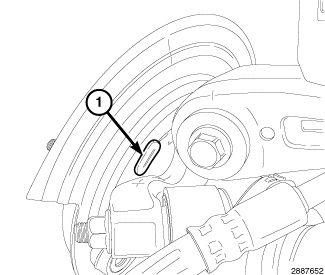

Fig 1: Plug
GC0145681Courtesy of CHRYSLER GROUP, LLC
  1. Be sure the parking brake lever is fully released.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the rear wheels.
  4. Remove the plug (1) from each access hole in the brake support plates.
  5. Insert an adjusting tool through the support plate access hole and engage the tool in the teeth of the adjusting screw star wheel.
  6. Rotate the adjuster screw star wheel until slight drag can be felt when the star wheel is rotated.
    • RH side adjusting screw star wheel, move the tool handle upward.
    • LH side adjusting screw star wheel, move the tool handle downward.
  7. Back off the adjuster screw star wheel until brake drag is eliminated.
  8. Repeat adjustment at the opposite wheel. Be sure adjustment is equal at both wheels.
  9. Install the support plate access hole plugs (1).
  10. Install the rear wheels. Refer to WHEELS, STANDARD PROCEDURE .
  11. Remove the supports and lower the vehicle.
  12. Depress the park brake lever and make sure the park brakes hold the vehicle stationary.
  13. Release the park brake lever.
