Lever, Parking Brake: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

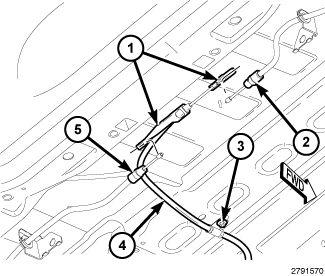

Fig 1: Rear Parking Brake Cables, Equalizer & Body Retaining Nut
GC0145671Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect the right rear and left rear parking cables (2, 5) from the equalizer (1).
  3. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  4. Lockout the parking brake lever assembly. Refer to PARKING BRAKE, STANDARD PROCEDURE .

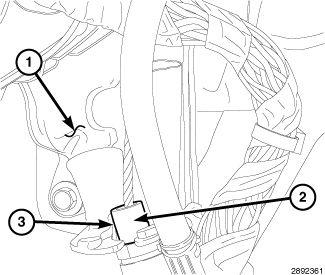

    Fig 2: Cable Housing Tabs, Cable Housing & Bracket Assembly
    GC0145685Courtesy of CHRYSLER GROUP, LLC
  5. Depress the cable housing tabs (3) and remove the cable housing (2) from the bracket assembly (1).

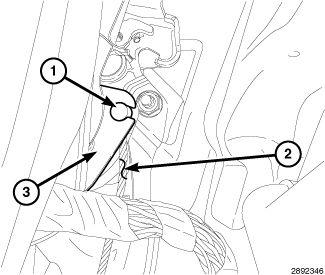

    Fig 3: Cable, Bracket Assembly & Cable End
    GC0145684Courtesy of CHRYSLER GROUP, LLC
  6. Pull the cable (2) up to align with the slot in the bracket assembly (3) and remove the cable end (1) from the bracket assembly (3).

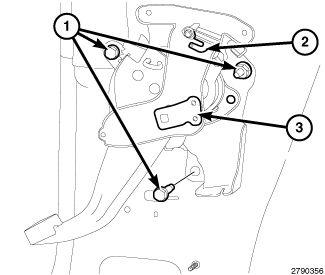

    Fig 4: Bolts & Clip
    GC0145670Courtesy of CHRYSLER GROUP, LLC
  7. Remove the instrument panel wiring harness connector from the parking brake assembly harness retainer clip (3).
  8. Disconnect the wiring harness connector from the parking brake switch (2).
  9. Remove the parking brake lever mounting bolts/nuts (1) and remove from vehicle.
