Cable, Parking Brake: Removal: Rear

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cable Retaining Bracket, Cable Housing & Equalizer

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the parking brake shoes. Refer to SHOES, PARKING BRAKE, REMOVAL .
Disconnect the brake cable end from the equalizer (3).
Depress the tabs on the cable housing (2) and pull through the cable retaining bracket (1).

Fig 2: Parking Brake Cable & Retaining Bracket
Courtesy of CHRYSLER GROUP, LLC
Remove the parking brake cable (1) from the retaining bracket (2).
Remove the tie straps and clips as necessary.

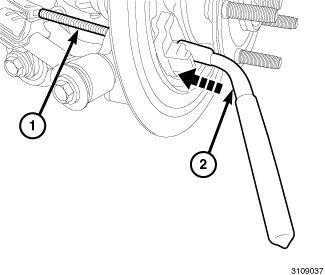

Fig 3: Rear Park Brake Cable Remover & Pull The Cable
Courtesy of CHRYSLER GROUP, LLC

NOTE:
It may be necessary to slightly move or twist the cable release tool to disengage both retaining clips.
Using Rear Park Brake Cable Remover - (special tool #10301, Remover, Rear Park Brake Cable) (2), insert the tool over the park brake cable end and press in to release the retaining clips, then pull the cable (1) out of the knuckle from the back.
