Cable, Parking Brake: Installation: Front

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Bolts & Clip

Courtesy of CHRYSLER GROUP, LLC

Fig 2: Cable, Bracket Assembly & Cable End

Courtesy of CHRYSLER GROUP, LLC

Install the front cable end (1) into the brake lever assembly (3).

Fig 3: Cable Housing Tabs, Cable Housing & Bracket Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the front cable housing (3) to the bracket (1).

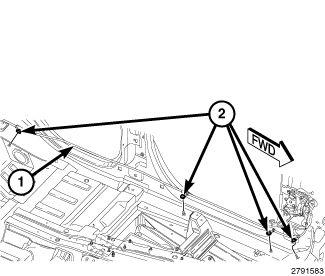

Fig 4: Retaining Studs
Courtesy of CHRYSLER GROUP, LLC
Route the cable (1) along and through the floor, and seat the grommet so that it is sealed.
Install the front parking brake cable to body clips and retaining nuts (2) to the studs and tighten to 8 N.m (71 in. lb.).
Install the wiring harness on the body retaining studs (2) as necessary.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 5: Rear Parking Brake Cables, Equalizer & Body Retaining Nut
Courtesy of CHRYSLER GROUP, LLC
Connect the right rear and left rear parking brake cables (2, 5) to the equalizer (1).
Install the cable to body clip and retaining nut (3) to the stud and tighten to 8 N.m (71 in. lb.).
Remove the supports and lower the vehicle.
Remove the lockout of the parking brake assembly. Refer to PARKING BRAKE, STANDARD PROCEDURE .
Install the left footwell load floor. Refer to LOAD FLOOR, FOOTWELL, INSTALLATION .
Install the right rear seat. Refer to SEAT, SECOND ROW, INSTALLATION or SEAT, THIRD ROW, INSTALLATION .
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
