Primary And Secondary Brake Tubes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install prop rod on the brake pedal to keep pressure on the brake system, Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.
  2. Siphon the master cylinder reservoir.
  3. Remove the air cleaner body. For 3.6L, refer to AIR CLEANER, INSTALLATION . For 5.7L, refer to AIR CLEANER, INSTALLATION .

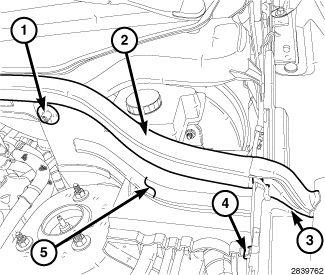

    Fig 1: Connector, Hood Weather Strip, Extension, Fastener & Tab
    GC0145592Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the connector (3) from the body and lift the hood weather strip (2) back enough for access to remove the cowl side extension (5).
  5. Remove the fastener (1) that secures the cowl side extension (5) to the center cowl extension.
  6. Release the tab (4) that secures the cowl side extension (5) and remove the extension.

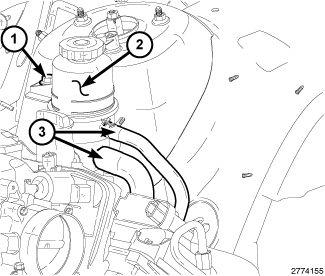

    Fig 2: Power Steering Reservoir, Hoses & Retaining Screw
    GC0145584Courtesy of CHRYSLER GROUP, LLC
  7. If necessary, remove the power steering reservoir retaining screw (1), hose routing clips, and position reservoir aside.

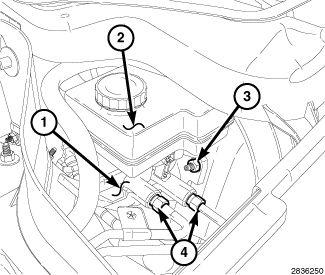

    Fig 3: Brake Lines, Master Cylinder & Nuts
    GC0145591Courtesy of CHRYSLER GROUP, LLC
  8. Remove the primary or secondary brake tube(s) (4) at the master cylinder (1).
    Fig 4: Hydraulic Control Unit (HCU), Primary & Secondary Brake Tubes, Chassis Lines & Antilock Brake System (ABS) Module Electrical Connector
    GC0145596Courtesy of CHRYSLER GROUP, LLC
  9. Remove the primary or secondary brake tube(s) (2) at the HCU (1).
  10. Remove the primary or secondary brake tube(s) from routing clip and from vehicle.
