Flexible Hose

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Front flexible brake hose shown, rear similar.

Install prop rod on the brake pedal to keep pressure on the brake system. Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.

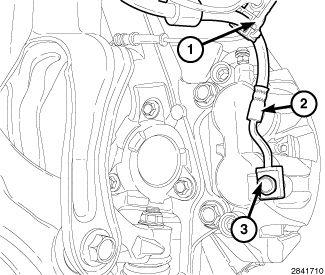

Fig 1: Wiring Routing Clip, Flexible Brake Hose, Banjo Bolt & Brake Hose
Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
If removing rear flexible brake hose, remove the tire and wheel assembly.
If equipped, disconnect the wheel speed sensor wiring routing clip (1) from the flexible brake hose (2).
Remove the banjo bolt (3) from the brake hose (2) and discard the washers.

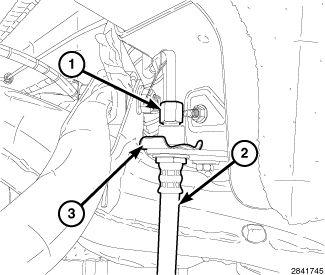

Fig 2: Solid Brake Line Fitting, Flexible Brake Hose & Retaining Clip
Courtesy of CHRYSLER GROUP, LLC
Remove the solid brake line fitting (1) from the flexible brake hose (2).
Remove the retaining clip (3) and remove the flexible brake hose (2) from the vehicle.
