Standard Procedure - Brake Fluid Level
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

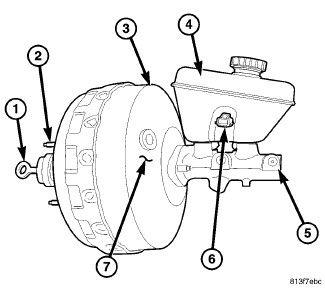

| 1 - PUSH ROD |
| 2 - BOOSTER MOUNTING STUDS |
| 3 - POWER BRAKE BOOSTER |
| 4 - FLUID RESERVOIR |
| 5 - MASTER CYLINDER |
| 6 - FLUID LEVEL SENSOR |
| 7 - CHECK VALVE GROMMET |
Always clean the master cylinder reservoir (4) and cap before checking fluid level. If not cleaned, dirt could enter the fluid.
The fluid fill level is indicated on the side of the master cylinder reservoir (4).
The correct fluid level is to the MAX indicator on the side of the reservoir. If necessary, add fluid to the proper level.
