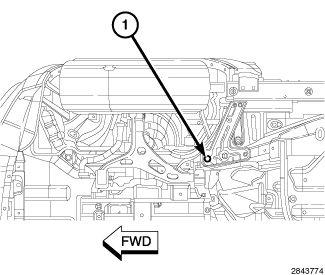

Front: Bottom view of the front cradle bolt (1) to be measured from.

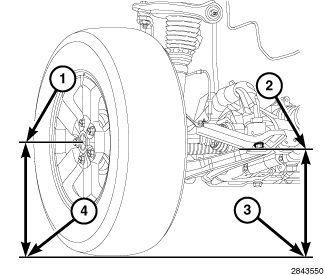

- Front Wheel Center Height - Measure the vertical distance between the front wheel center (1) and the ground (4), Record the measurement .
- Front Cradle Height - Measure the vertical distance between the center of the cradle bolt (2) to the ground (3), Record the measurement .
- Take the two measurements and subtract them to get the ride height. Refer to CURB HEIGHT SPECIFICATIONS for specifications.

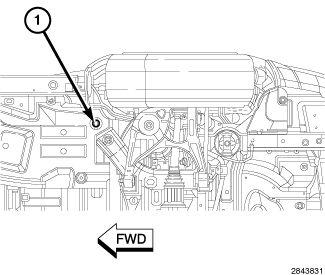

Rear: Bottom view of the rear cradle bolt (1) to be measured from.

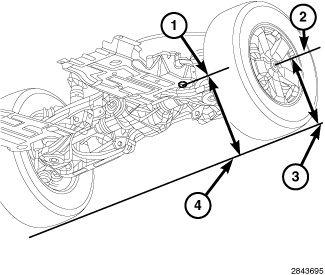

- Rear Wheel Center Height - Measure the vertical distance between the front wheel center (2) and the ground (3), Record the measurement .
- Rear Cradle Height - Measure the vertical distance between the center of the cradle bolt (1) to the ground (4), Record the measurement .
- Take the two measurements and subtract them to get the ride height. Refer to CURB HEIGHT SPECIFICATIONS for specifications.
CURB HEIGHT SPECIFICATIONS
| FRONT RIDE HEIGHT | REAR RIDE HEIGHT | Cross Ride Height | |
|---|---|---|---|
| Center of Spindle to Cradle | |||
| Base Suspension | 90 mm +/- 12 mm (3.54 in. +/- 0.47 in.) | 73 mm +/- 12 mm (2.87 in. +/- 0.47 in.) | +/- 12 mm (+/- 0.47 in) |
| Aero Suspension | 110 mm +/- 12 mm (4.33 in. +/- 0.47 in.) | 93 mm +/- 12 mm (3.66 in. +/- 0.47 in.) | |
| Sport Suspension | 110 mm +/- 12 mm (4.33 in. +/- 0.47 in.) | 93 mm +/- 12 mm (3.66 in. +/- 0.47 in.) | |
