Shock Absorber, Suspension: Removal: 4X4

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

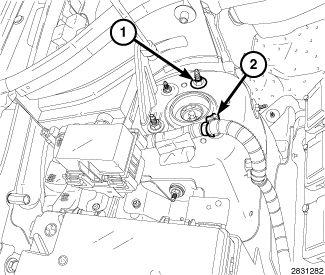

Fig 1: Harness Routing Clip & Upper Shock Mounting Nuts

Courtesy of CHRYSLER GROUP, LLC

If equipped, remove the wiring harness routing clip (2) from the shock mounting stud.
Remove the three upper shock mounting nuts (1).
Turn the wheels so the front of the tire on the side being serviced is turned to the inside of the vehicle.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
NOTE:
With the upper shock assembly mounting nuts removed, the half shaft and the shock assembly will come out together.
Remove the half shaft. Refer to REMOVAL .
Remove and transfer the spring and mount if necessary. Refer to SPRING, FRONT COIL, REMOVAL .
