Shock Absorber, Suspension: Installation: 4X4

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

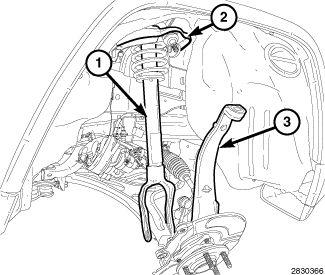

Fig 1: Upper Control Arm, Shock & Knuckle Assembly
GC0146069Courtesy of CHRYSLER GROUP, LLC
  1. Position the shock assembly (1) to the vehicle aligning the upper shock mounting studs into the body.
    Fig 2: Harness Routing Clip & Upper Shock Mounting Nuts
    GC0145679Courtesy of CHRYSLER GROUP, LLC
  2. Install the upper shock mounting nuts and tighten to 28 N.m (21 ft. lbs.).
  3. If equipped, install the wiring harness routing clip (2) on the shock mounting stud.
  4. Install the half shaft. Refer to INSTALLATION .
  5. Remove the supports and lower the vehicle.
  6. Pump brake pedal until caliper pistons and brake pads are seated and a firm brake pedal is obtained.
