Hub And Bearing: Removal: 4X4
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the wheel and tire assembly.
- Remove the brake rotor. Refer to ROTOR, BRAKE, REMOVAL .
- Remove the half shaft nut.NOTE:
Discard the hub nut after removal. It is not to be reused.
- Remove the speed sensor bolt (2), and remove the sensor from the knuckle.
- Remove the speed sensor wiring retaining clip from the knuckle.

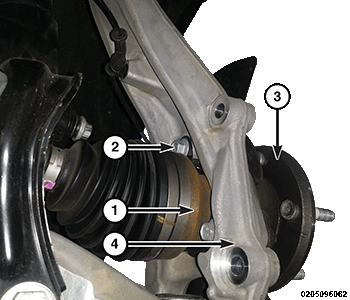

- Remove the three hub/bearing bolts (2) and remove the hub/bearing (3) from the knuckle assembly.
