Hub And Bearing: Installation: 4X2
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

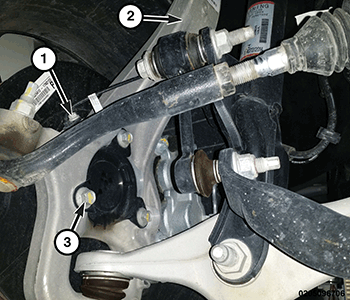

- Position the hub bearing into the knuckle (2), install the 3 bolts (3) and tighten to 105 N.m (78 ft. lbs.).
- Install the wheel speed sensor into the knuckle (2), install the sensor mounting bolt (1) and tighten to 11 N.m (95 in. lbs.).
- Install the brake rotor. Refer to ROTOR, BRAKE, INSTALLATION .
- Install the wheel and tire assembly. Refer to WHEELS, STANDARD PROCEDURE .
- Remove the support and lower the vehicle.
