Evaporator, A/C: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

LHD model shown. RHD model similar.

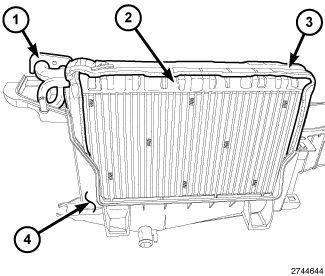

Fig 1: Tapping Block, A/C Evaporator, Insulator & HVAC Housing
GC0145612Courtesy of CHRYSLER GROUP, LLC
  1. Remove the HVAC housing assembly. Refer to HOUSING, HVAC, REMOVAL .
  2. Disassemble the HVAC housing as necessary to access the A/C evaporator (2). Refer to HOUSING, HVAC, DISASSEMBLY .
  3. Remove the tapping block (1) from the evaporator tubes.
  4. Lift the A/C evaporator and insulator (3) out of the lower half of the HVAC housing (4).
  5. If required, remove the insulator from the A/C evaporator. If the insulator is deformed or damaged, it must be replaced.
