Evaporator, A/C, Rear: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.

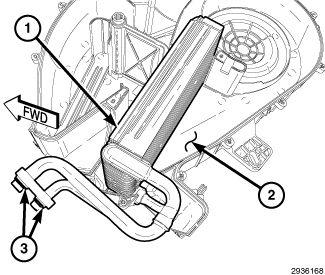

Fig 1: Rear A/C Evaporator & Rear Heater-A/C Housing
GC0146248Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear heater-A/C housing and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL .
  2. Disassemble the rear heater-A/C housing as necessary to access the A/C evaporator (1). Refer to HOUSING, HVAC, DISASSEMBLY .
  3. Carefully lift the rear A/C evaporator out of the outboard half of the rear heater-A/C housing (2) and remove and discard the rubber O-ring seals (3). If the foam seals around the rear evaporator are deformed or damaged, they must be replaced.
