Housing-Air Distribution

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The air distribution housing must be removed from the HVAC housing and disassembled for service of the mode-air and blend-air doors.

NOTE:

LHD model shown in illustrations. RHD model similar.

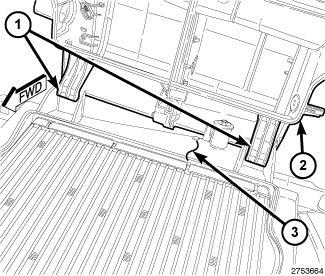

Fig 1: Air Distribution Housing, Two Tab-And-Slot Type Retainers & HVAC Housing
GC0145926Courtesy of CHRYSLER GROUP, LLC
  1. Position the air distribution housing (2) to the rear of the HVAC housing (3)
  2. Engage the two tab-and-slot type retainers (1).
  3. Tip the air distribution housing upward until it is properly aligned with the HVAC housing.

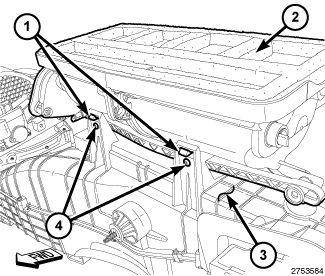

    Fig 2: Two Screws & Air Distribution Housing
    GC0145925Courtesy of CHRYSLER GROUP, LLC
  4. Carefully engage the two retaining tabs (1) that secure the air distribution housing (2) to the HVAC housing (3).
  5. Install the two screws (4) that secure the air distribution housing to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).

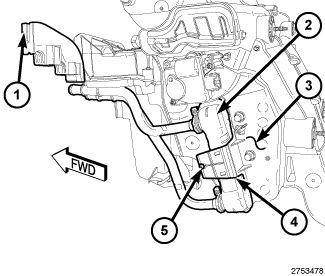

    Fig 3: Flange, Screw, Heater Core Retaining Bracket & Air Distribution Housing
    GC0145924Courtesy of CHRYSLER GROUP, LLC
  6. Carefully install the heater core (2) into the air distribution housing (3).
  7. Reposition the heater core retaining bracket (4) and install the screw (5). Tighten the screw to 2.2 N.m (20 in. lbs.).
  8. Reposition the lower part of the flange (1).

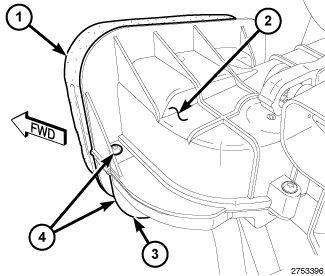

    Fig 4: Foam Seal, Two Screws, HVAC Housing & Flange
    GC0145923Courtesy of CHRYSLER GROUP, LLC
  9. Install the two screws (4) that secure the lower part of the flange (3) to the upper part of the HVAC housing (2). Tighten the screws to 2.2 N.m (20 in. lbs.).
  10. Install the foam seal (1) onto the front of the HVAC housing.
  11. Reposition and connect the wire harness to the mode door actuator, both blend door actuators and the evaporator temperature sensor (Refer to CONTROLS  ).
  12. Install the floor distribution ducts onto the air distribution housing. Refer to DUCT, FLOOR DISTRIBUTION, INSTALLATION .
  13. Install the HVAC housing assembly. Refer to HOUSING, HVAC, INSTALLATION .
