Housing-HVAC Assembly

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The HVAC housing must be removed from the vehicle and disassembled for service of the A/C evaporator.

NOTE:

LHD model shown in illustrations. RHD model similar.

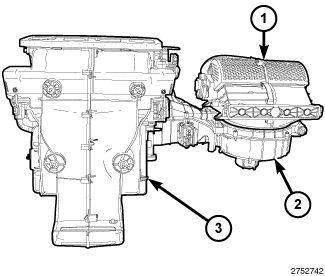

Fig 1: Air Inlet Housing & HVAC Housing
GC0145920Courtesy of CHRYSLER GROUP, LLC
  1. Remove the HVAC housing assembly and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL .
  2. Remove the air inlet housing (1) from the HVAC housing. Refer to HOUSING, HVAC, REMOVAL .
  3. Remove the air distribution housing (3) from the HVAC housing. Refer to HOUSING, HVAC, REMOVAL .

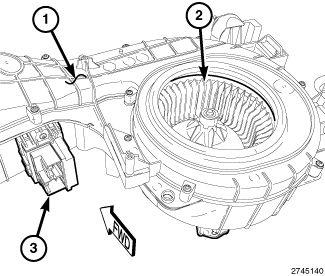

    Fig 2: Blower Motor, Blower Motor Power Module Or Resistor & HVAC Housing
    GC0145914Courtesy of CHRYSLER GROUP, LLC
  4. Remove the screws that secure the blower motor (2) and the blower motor power module or resistor (3), depending on application, to the HVAC housing (1).
  5. Remove the blower motor and the blower motor power module or resistor from the HVAC housing.

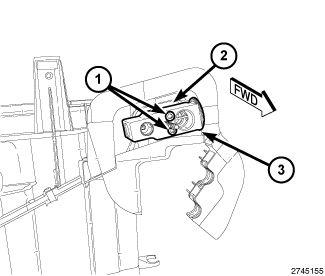

    Fig 3: Two Bolts, A/C Expansion Valve & Tube Tapping Block
    GC0145915Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two bolts (1) that secure the A/C expansion valve (3) to the evaporator tube tapping block (2).
  7. Remove the A/C expansion valve from the evaporator tube tapping block and remove and discard the O-ring seals.
  8. Install plugs in, or tape over the opened evaporator tube fittings.

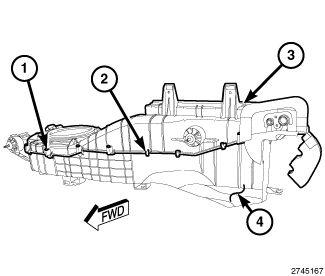

    Fig 4: Screws, Metal Retaining Clips & HVAC Housing
    GC0145916Courtesy of CHRYSLER GROUP, LLC
  9. Remove the fifteen screws (1) and three metal retaining clips (2) that secure the upper half of the HVAC houing (3) to the lower half of the HVAC housing (4).
    NOTE:

    Use care when separating the HVAC housing to prevent damage to the alignment pins located on the lower half of the housing.

  10. Separate the two halves of the HVAC housing by lifting straight up on the upper half of the housing.
    Fig 5: Tapping Block, A/C Evaporator, Insulator & HVAC Housing
    GC0145612Courtesy of CHRYSLER GROUP, LLC
  11. Remove the tapping block (1) from the evaporator tubes.
  12. Lift the A/C evaporator (2) and insulator (3) out of the lower half of the HVAC housing (4).
  13. If required, remove the insulator from the A/C evaporator. If the insulator is deformed or damaged, it must be replaced.
