Instrument Panel

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the radio in order to gain access to the instrument panel air outlet temperature sensors. Refer to RADIO, REMOVAL .

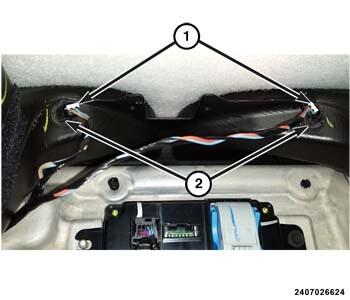

    Fig 1: Air Outlet Temperature Sensor Wire Harness Connector
    GC0158345Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the HVAC wire harness (1) from the air outlet temperature sensor (2).
    Fig 2: Air Outlet Temperature Sensor & Instrument Panel Duct
    GC0158332Courtesy of CHRYSLER GROUP, LLC
  4. Using a Trim Stick (special tool #C-4755, Trim Stick) or equivalent, disengage the air outlet temperature sensor (1) from the instrument panel duct (2) and remove the sensor.
