Module, Power, Blower Motor: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

WARNING:

The heat sink for the blower motor power module may get very hot during normal operation. If the blower motor was turned on prior to servicing the blower motor power module, wait five minutes to allow the heat sink to cool before performing diagnosis or service. Failure to take this precaution can result in possible personal injury.

NOTE:

Automatic Temperature Control (ATC) shown. Manual Temperature Control (MTC) similar.

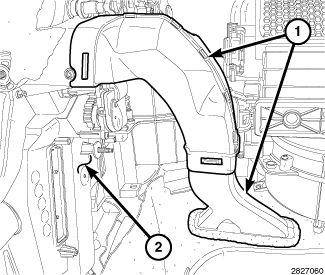

Fig 1: Passenger Side Floor Ducts

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Illustration shown with instrument panel removed from view for clarity.

Disconnect and isolate the negative battery cable.
Remove the passenger side instrument panel silencer.
Disconnect the passenger side floor ducts (1) from the HVAC housing (2).

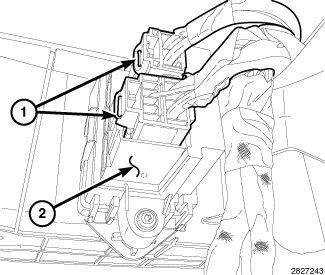

Fig 2: Wiring Harness Connectors & Motor Power Module
Courtesy of CHRYSLER GROUP, LLC
Disconnect the two wiring harness connectors (1) from the blower motor power module (2).

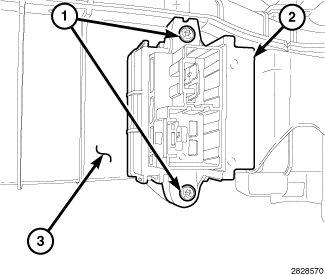

Fig 3: Two Screws, Blower Motor Power Module & HVAC Housing
Courtesy of CHRYSLER GROUP, LLC
Remove the two screws (13) that secure the blower motor power module (2) to the HVAC housing (3).
Remove the blower motor power module from the HVAC housing.
