3.6L Coolant Crossover

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Remove the thermostat housing. Refer to THERMOSTAT, REMOVAL .

Fig 1: Heater Supply Hose From Coolant Crossover
Courtesy of CHRYSLER GROUP, LLC
Remove the heater supply hose from the coolant crossover (1).

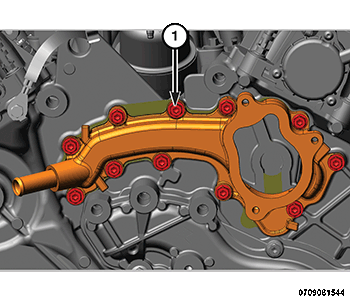

Fig 2: Coolant Crossover Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts and the coolant crossover. Take notice to the bolts that bolt directly to the timing cover.

Fig 3: Coolant Crossover Gasket
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the gasket (1).
