3.6L Coolant Crossover

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

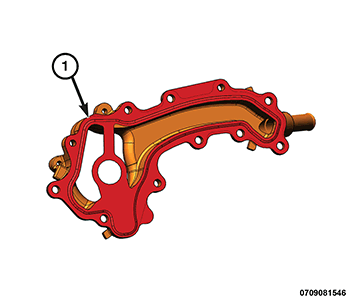

Fig 1: Coolant Crossover Gasket

Courtesy of CHRYSLER GROUP, LLC

Clean gasket sealing surfaces.
Install a NEW gasket (1) onto the coolant crossover.

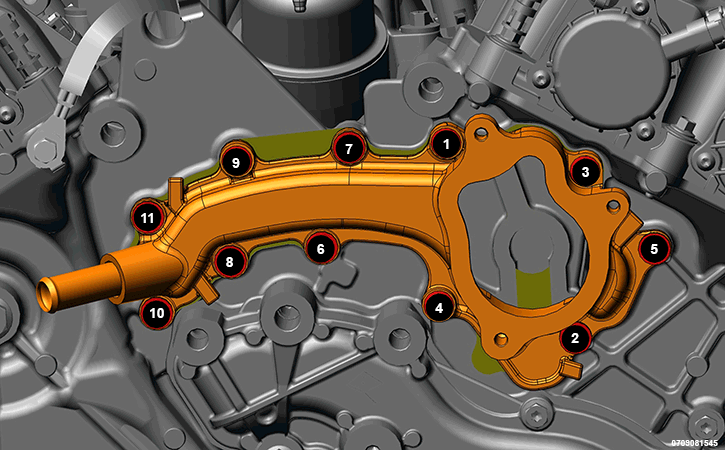

Fig 2: Coolant Crossover Bolts Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The shorter M6 mounting bolts (2), bolt directly to the engine timing cover.
Install the coolant crossover. Using the tightening sequence shown in illustration, tighten the bolts to the proper specification. Refer to SPECIFICATIONS .

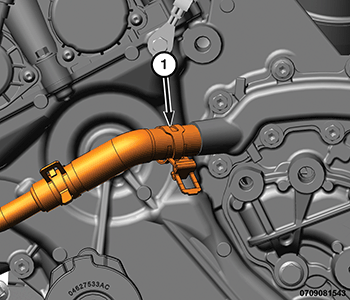

Fig 3: Heater Supply Hose From Coolant Crossover
Courtesy of CHRYSLER GROUP, LLC
Install the heater supply hose to the coolant crossover (1).
Install the thermostat housing. Refer to THERMOSTAT, INSTALLATION .
