Pulley, Idler: Removal: 5.7

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

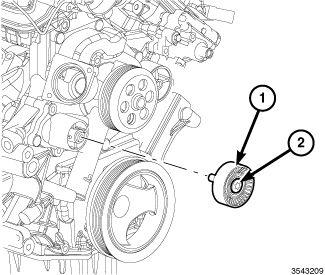

Fig 1: Idler Pulley - 5.7L
GC0144931Courtesy of CHRYSLER GROUP, LLC
  1. Remove accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL  .
  2. Remove bolt (2) and idler pulley (1).
