5.7L Idler Bracket

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

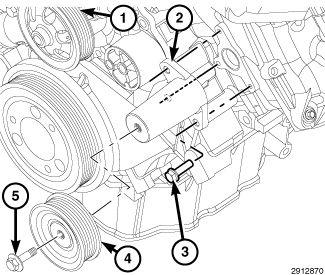

Fig 1: Idler Pulley, Idler Bracket & Mounting Bolts
GC0144484Courtesy of CHRYSLER GROUP, LLC
  1. Install the idler bracket bolts (2). Tighten the idler bracket bolts (3) to the proper specification. Refer to SPECIFICATIONS .
  2. Install the idler pulley (4). Tighten the idler pulley bolt (5) to the proper specification. Refer to SPECIFICATIONS .
  3. Install the serpentine drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
