No Response From TPM (Tire Pressure Monitoring) Module: Notes
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.

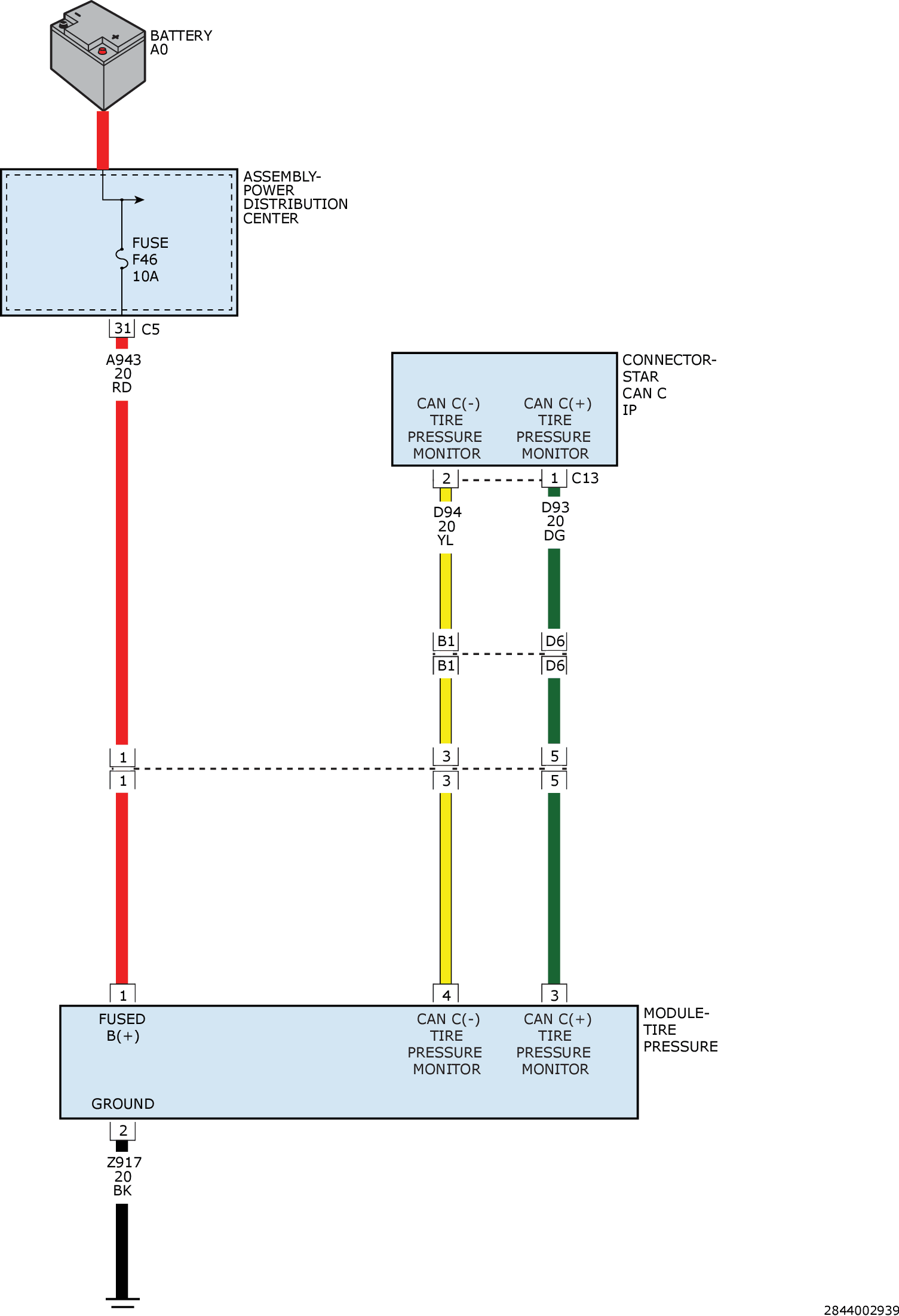

Fig 1: Tire Pressure Module CAN C & Fused B+ Wiring Diagram
