No Response From Orc (Occupant Restraint Controller): Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

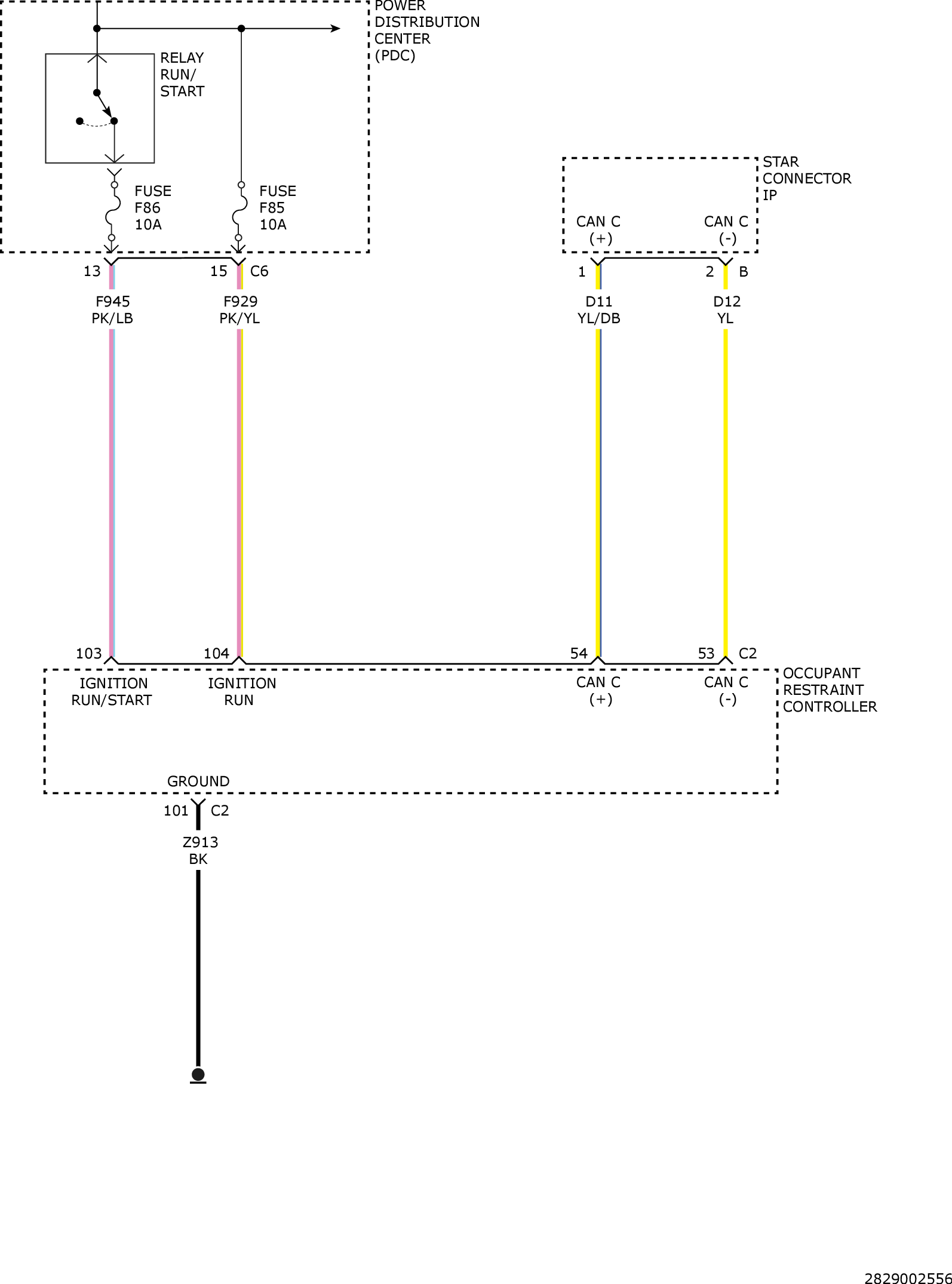

Fig 1: Occupant Restraint Controller Power, Ground & CAN C Circuit Diagram
GC0160872Courtesy of CHRYSLER GROUP, LLC
