3.6L W/Ess

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left engine mount. Refer to INSULATOR, ENGINE MOUNT, LEFT, REMOVAL .
  2. Remove the front suspension skid plate. Refer to PLATE, SKID, FRONT SUSPENSION, REMOVAL .
  3. Remove the front skid plate. Refer to PLATE, SKID, FRONT, REMOVAL .
  4. Remove the starter solenoid heat shield.

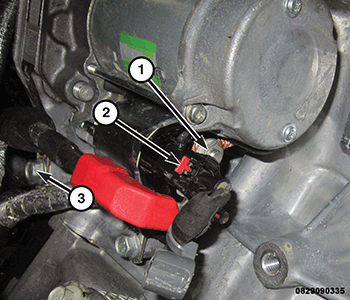

    Fig 1: Solenoid Stud, Battery Cable Nuts & Connector
    GC0173661Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the starter solenoid electrical connector (2) from the starter solenoid terminal.
  6. Remove the battery cable nuts (3) and battery cable from the solenoid stud (1).

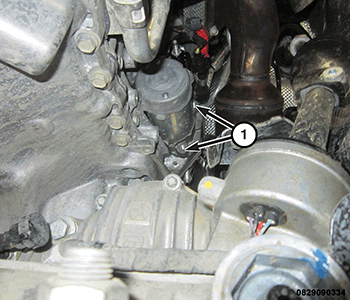

    Fig 2: Starter Mounting Bolts
    GC0173590Courtesy of CHRYSLER GROUP, LLC
  7. Remove the two starter mounting bolts (1).
  8. Remove the starter from the vehicle.
