Section 124 (Starting System (Service Information)): Starter: Installation: 3.6L

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Starter Solenoid Electrical Connector, Solenoid Stud, Starter Mounting Bolts & Starter Assembly
GC0144659Courtesy of CHRYSLER GROUP, LLC
  1. Position the starter (3) inside the transmission.
  2. Install the starter mounting bolts (4) and tighten to 55 N.m (41 ft. lbs.).
  3. Connect the starter solenoid electrical connector (1) to starter solenoid terminal.

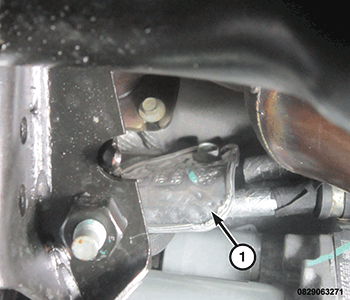

    Fig 2: Starter Solenoid Heat Shield
    GC0172091Courtesy of CHRYSLER GROUP, LLC
  4. Install the starter solenoid heat shield.

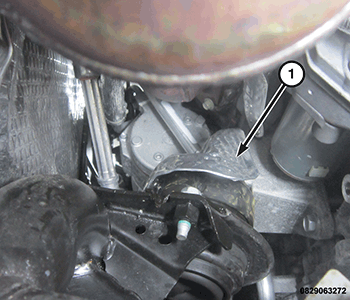

    Fig 3: Left Engine Mounts Heat Shield
    GC0172105Courtesy of CHRYSLER GROUP, LLC
  5. Install the left engine mounts heat shield.
  6. Connect the negative battery cable and tighten nut to 5 N.m (44 in. lbs.).
