Forward Cargo Area

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

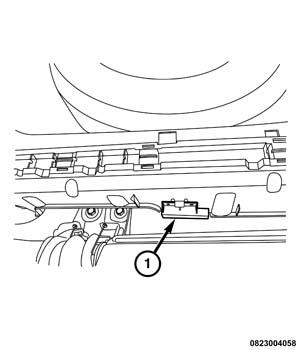

Fig 1: Low Frequency Antenna Assembly

Courtesy of CHRYSLER GROUP, LLC

Position the Low Frequency (LF) antenna (1) to the release clip located in the forward cargo area frame.
Install the LF antenna to the clip so that it is secured in place.
Reconnect the body wire harness connector to the connector receptacle of the LF antenna.
Fold the gap filler down into proper position.
Set the left rear seat to its upright position.
Reconnect the battery negative cable.
